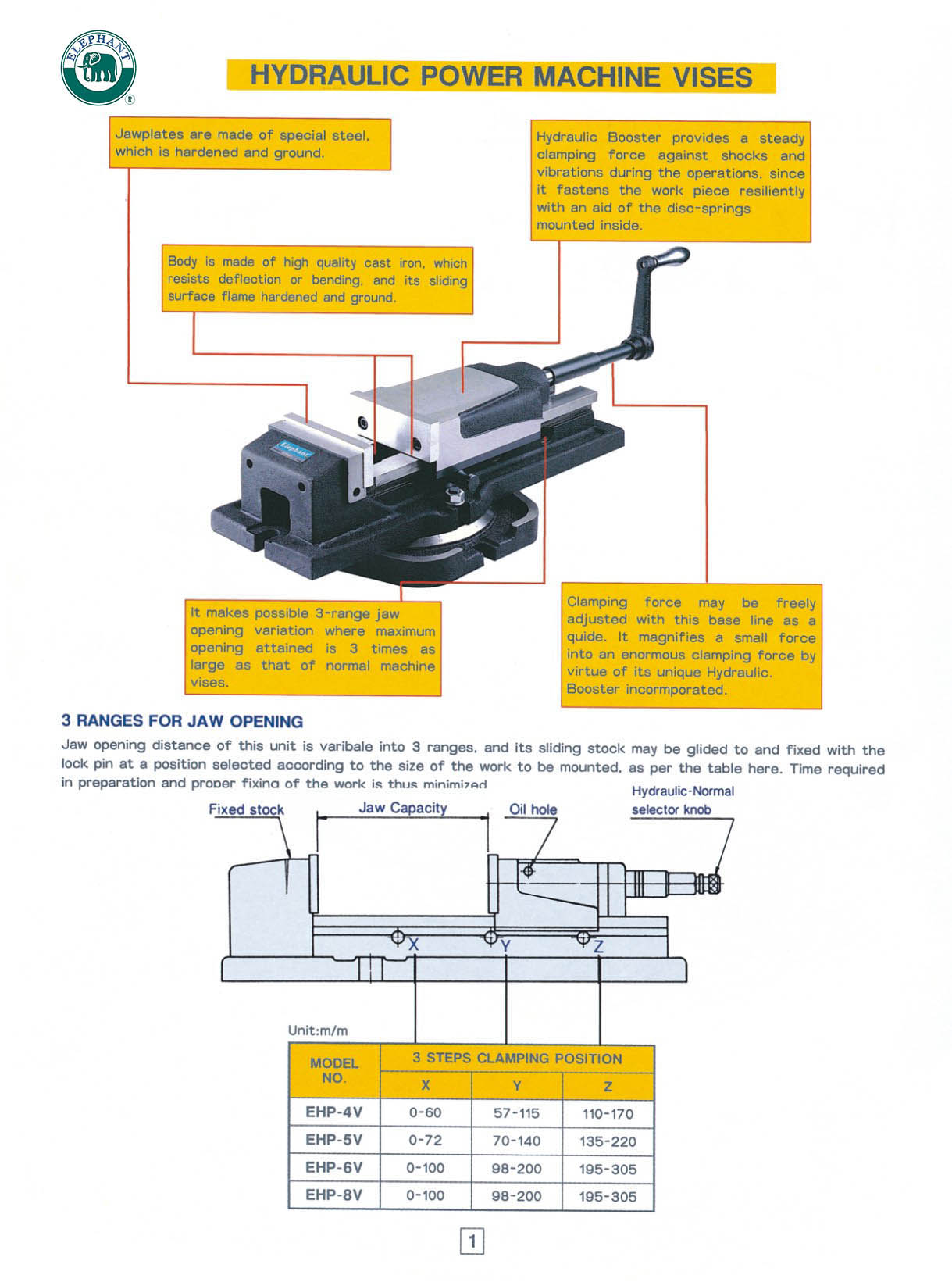

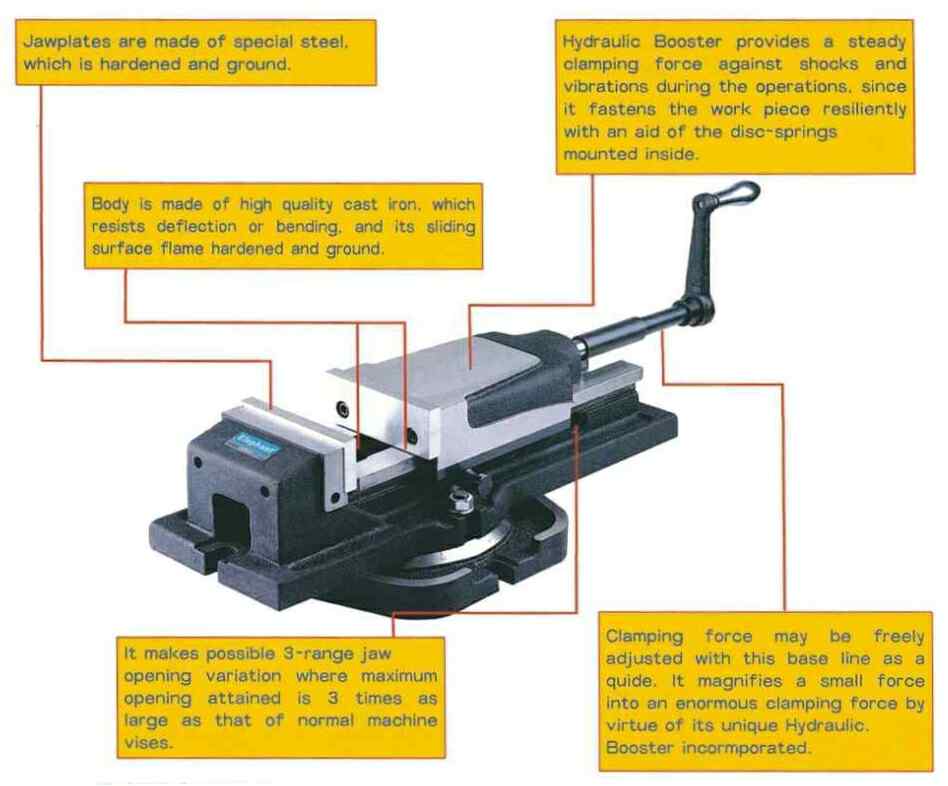

• Jawplates are made of special steel, which is hardened and ground.
• Body is made of high quality cast iron, which resists deflection or bending, and its sliding surface flame hardened and ground.
• Hydraulic Booster provides a steady clamping force against shocks and vibrations during the operations, since it fastens the work piece resiliently with an aid of the disc-springs mounted inside.
• It makes possible 3-range jaw opening variation where maximum opening attained is 3 times as large as that of normal machine vises.
• Clamping force may be freely adjusted with this base line as a guide. It magnifies a small force into an enormous clamping force by virtue of its unique Hydraulic.
• Booster incormporated.
• High precision excellent rigidity.
• ACCURATELY : The accuracy is ±0.005 m/m. Each of part made of selected specialy alloy steel, hardened and precision ground.
• POWER: The fastening power 10 times stronger than the normal machine vise. And can be firmly clamped quickly. Ensuring the safety operation.
• LIGHTLY: The operation is smooth and easy.

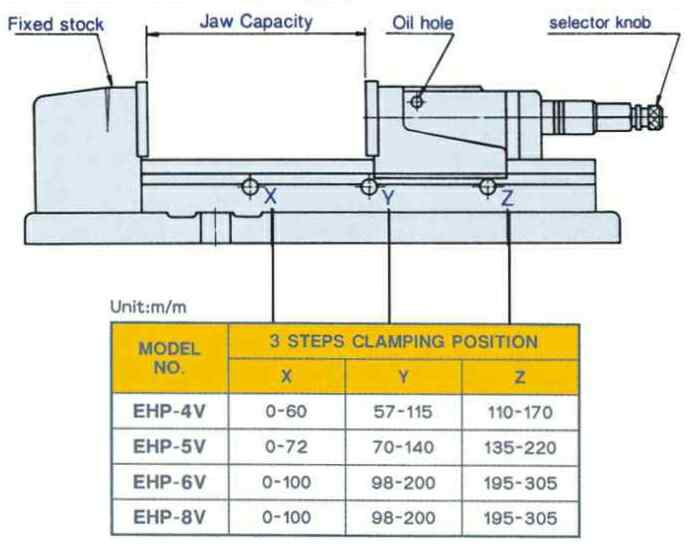

3 RANGES FOR JAW OPENING

     Jaw opening distance of this unit is variable into 3 ranges, and its sliding stock may be glided to and fixed with the lock pin at a position selected according to the size of the work to be mounted, as per the table here. Time required in preparation and proper fixing of the work is thus minimized.

Any specifications may be changed without notice.
